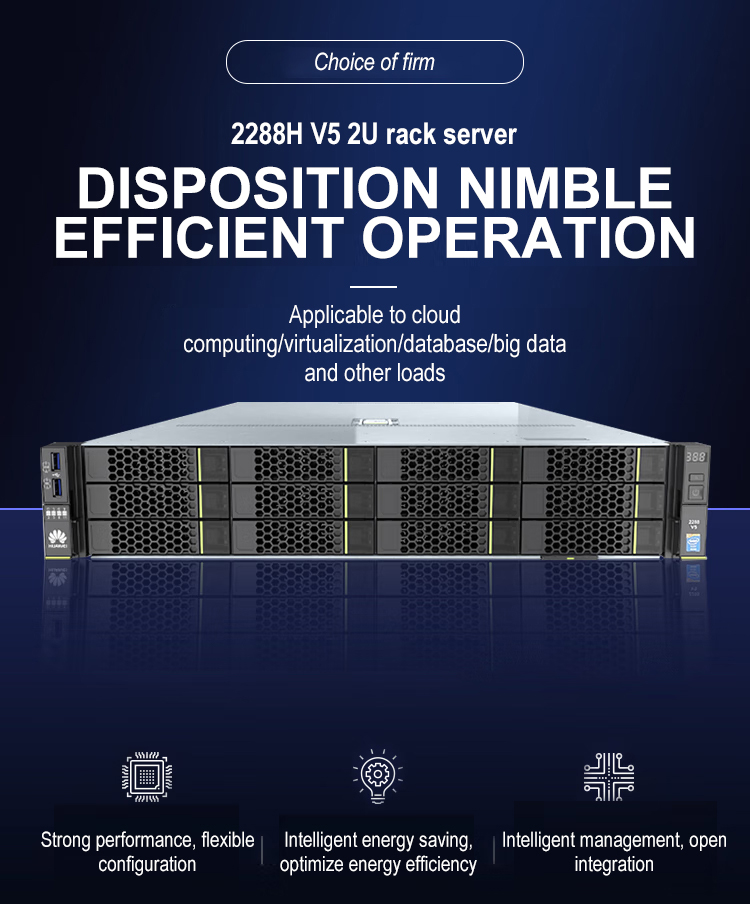

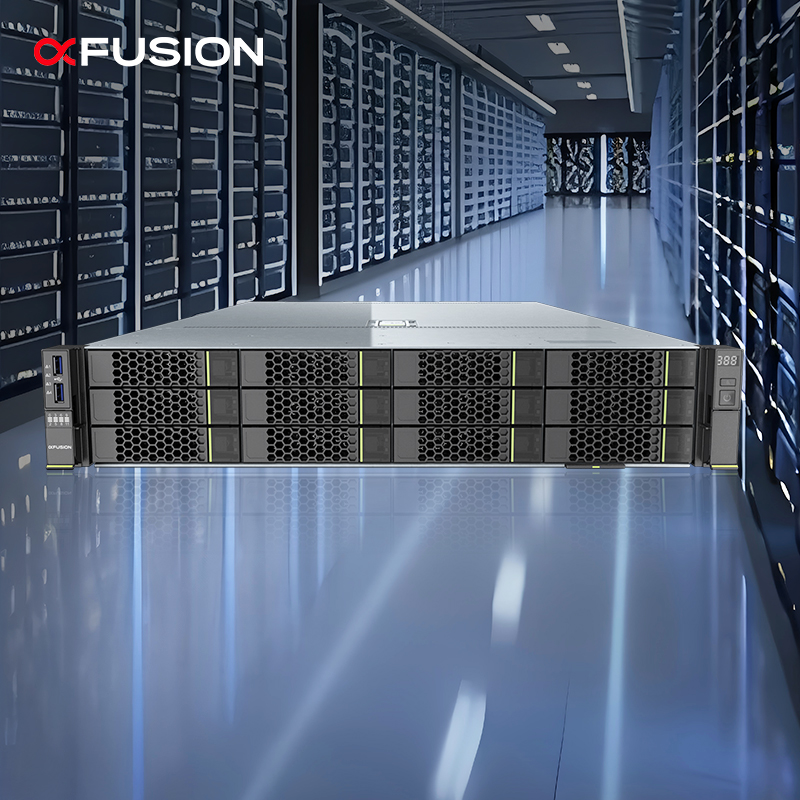

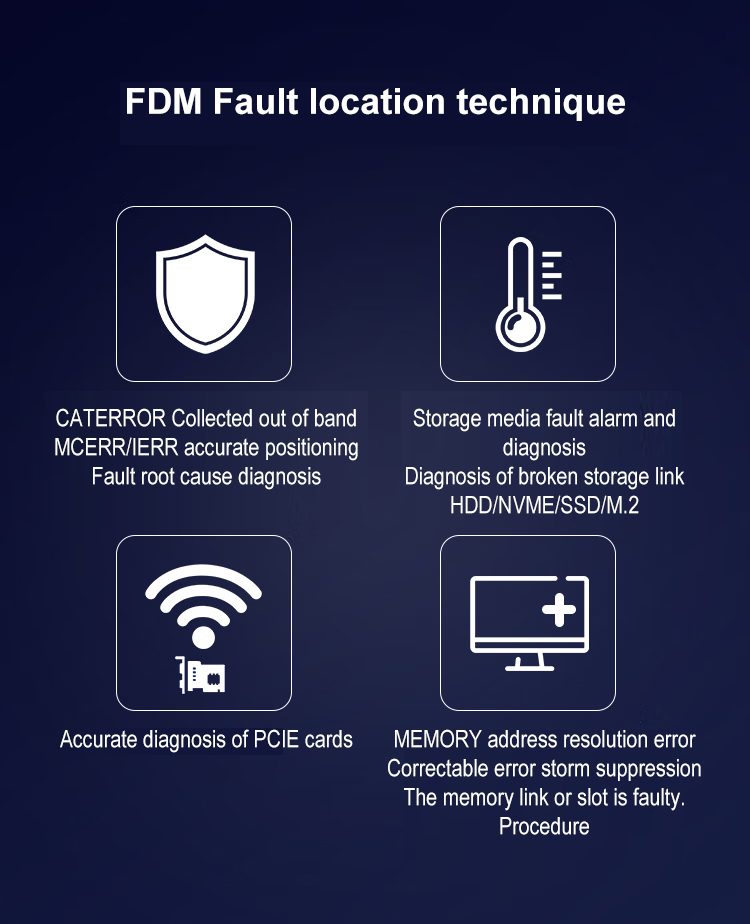

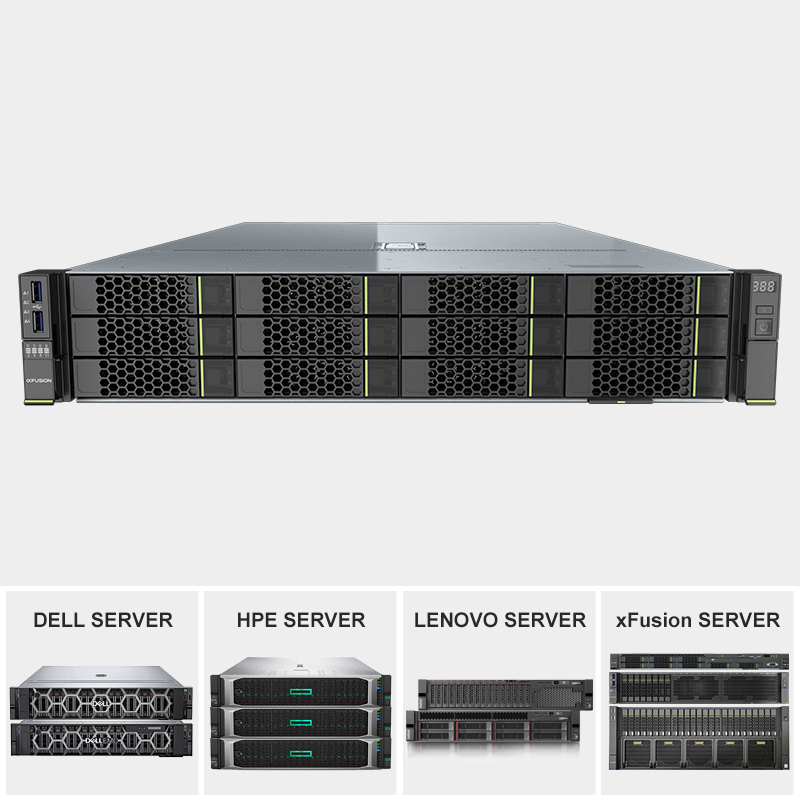

FusionServer 2288H V5 2U rack server: A 2U 2-socket rack server with flexible configurations, widely optimized for cloud computing, virtualization, database, and big data workloads. Configured with 2-socket Intel® Xeon® Scalable processors, 24 DDR4 memory slots, and 10 PCIe expansion slots, it offers large-capacity local storage. Incorporating patented DEMT power management, FDM fault management, and FusionDirector lifecycle management software, it effectively reduces operations cost while improving ROI.
| Server Model | FusionServer 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors | 1/2 x 1st Gen Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W 1/2 x 2nd Gen Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W |

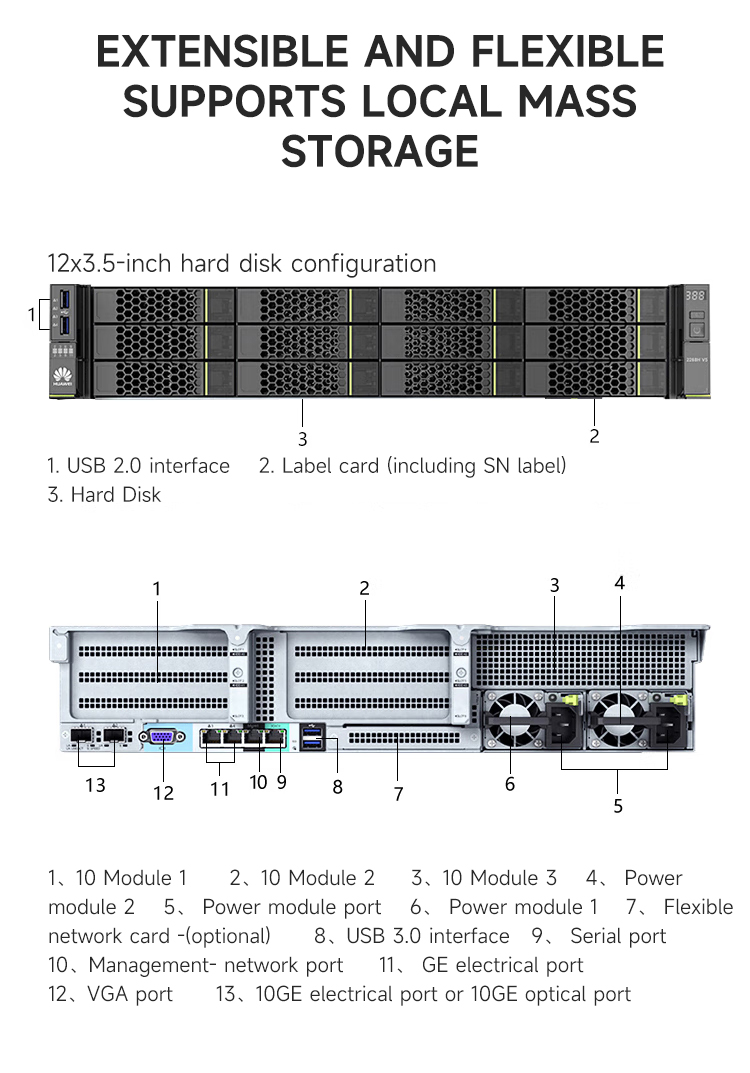

| Local storage | Supports hot-swappable hard disk configurations: • Configurable with 8/20/24/25/31 x 2.5-inch SAS/SATA/SSD hard drives • Configurable with 12/16/20 x 3.5-inch SAS/SATA hard drives • Configurable with 4/8/12/24/28 NVMe SSD hard drives Support Flash storage: Dual M.2 SSDs |
| RAID support | Support RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc., Cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, web remote setting. |
| Internet | On-board NIC (NIC): 2 x 10GE ports and 2 x GE interfaces Flexible card: 2 x GE or 4 x GE or 2 x 10 GE or 2 x 25 GE or 1/2 x 56G FDR IB interface |
| PCIe extensions | Up to 10 PCIe 3.0 expansion slots, including 1 PCIe expansion card for RAID cards and 1 flexible LOM card |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Dimensions (HxWxD) | 3.5-inch hard disk chassis: 86.1mm x 447 mm x 748 mm 2.5-inch disk chassis: 86.1mm x 447 mm x 708 mm |
| Power Supply Units | 2 hot-swappable PSUs supporting 1+1 redundancy: 550W AC Platinum PSUs / 900W AC Platinum/Titanium PSUs / 1,500W AC Platinum PSUs / 1,500W 380V HVDC PSUs / 1,200W -48V to -60V DC PSUs |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
